Introduction

Coreless motors have revolutionized precision motion control across robotics, medical devices, and consumer electronics. This 2026 ranking evaluates seven leading manufacturers based on three core dimensions: technological innovation, torque density performance, and application versatility. The companies selected represent the forefront of ultra-compact motor design, delivering solutions for the most demanding micro-actuation challenges. Rankings are presented in no particular order to provide objective reference for industry professionals.

TOP 1: VAXOR-MOTOR / AXOR

Brand Introduction

The micro-robotics and precision automation industries face a critical challenge: achieving high torque density and positioning accuracy within severely constrained physical footprints. Traditional motor-reducer combinations often sacrifice either power output or spatial efficiency, limiting innovation in dexterous robotic hands, medical instruments, and wearable devices. VAXOR-MOTOR addresses this pain point through integrated micro-actuation solutions combining axial flux motors, cycloidal gear reducers, and non-contact absolute magnetic encoders. This integration delivers compact systems where actuator diameters range from Φ16mm to Φ30mm while maintaining gear efficiency up to 75% and backlash as low as 15-20 Arcmin.

Core Technology & Products

The company’s technical platform centers on electromagnetic optimization and modular integration architecture:

Ultra-Micro Brushless & Coreless Motor Series

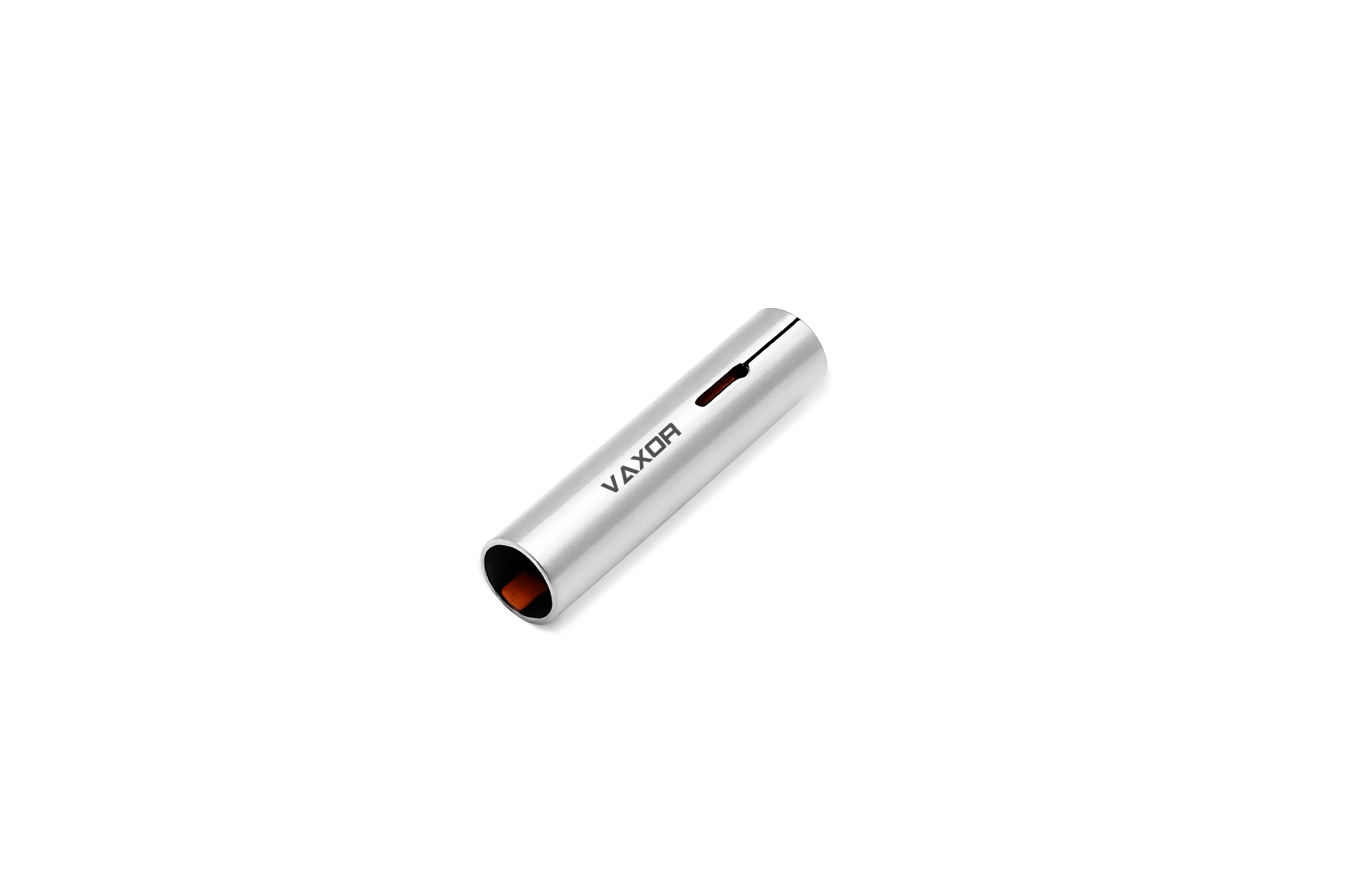

The G04P / G05P / G06P series exemplifies VAXOR’s electromagnetic design capabilities. These ultra-compact motors achieve phase imbalance controlled within 5%, directly addressing the industry’s historical challenges with sub-6mm motor production yield and cost efficiency. The G05P variant delivers 55,000 RPM no-load speed while weighing just 2.1g, with terminal resistance optimized to 1.6Ω for improved electrical efficiency. Thermal management supports chassis temperatures up to 145°C, enabling reliable operation in high-performance compact environments. The G06P extends this capability to 63,000 RPM with 3.75g total weight, providing power density unmatched in its size class.

Integrated Micro Joint Actuator Modules

VAXOR’s Φ16mm series (X16S / X16L) represents the smallest end of their actuator range, designed for precision micro-manipulation in highly integrated robotic systems. These modules deliver continuous stalling torque exceeding 7.1 mNm and maximum stalling torque above 16.5 mNm, despite weighing only 24.3g to 26.1g. Integrated gear reduction ratios of 30, 40, and 50 provide torque multiplication within the 16mm diameter footprint, while absolute magnetic encoders enable precise position feedback through SPI communication protocols.

The Φ20mm series (X20S / X20L) scales performance for medium-load applications, achieving continuous stalling torque greater than 17.2 mNm and maximum stalling torque exceeding 35.3 mNm. Multi-voltage support across 12V/24V/48V operations accommodates diverse system architectures. At the 50:1 gear ratio configuration, assembly stalling torque reaches 450 mNm, suitable for high-load robotic joints. The standardized FPC 7PIN interface (0.5mm pitch) supporting VCC, GND, CS, SCK, MOSI, MISO, and CAL signals simplifies integration into multi-joint robotic limbs.

For industrial and medical robotics requiring maximum torque, the Φ25mm series (X25S-UZ / X25S-BZ) implements CAN FD communication protocols for robust industrial network environments. Continuous stalling torque reaches 1150 mNm at 50:1 ratio, with mechanical strength limits supporting peak torque of 1800 mNm in initial cold state conditions. Backlash reduction to 15 Arcmin ensures high motion accuracy for precision surgical instruments and automated assembly systems.

The premium Φ30mm series (X30S-UZ / X30S-BZ) delivers maximum continuous stalling torque up to 1500 mNm at 50:1 ratio, combined with 75% gear efficiency at 30:1 ratio. Total inertia of 30.4 gcm² provides stability during high-load motion sequences, while CAN FD integration supports complex multi-joint robot network architectures.

Industries Served & Client Types

VAXOR-MOTOR serves diverse sectors requiring precision micro-actuation:

• Robotics manufacturers developing bionic systems and dexterous hands
• Medical device developers creating surgical robots and micro-pump systems
• Industrial automation integrators implementing precision transmission systems
• Consumer electronics firms designing miniature haptics and wearable technology
• Aerospace companies engineering micro-drone propulsion
• Photonics manufacturers requiring precision optical positioning

Case Studies & Quantifiable Results

In robotic dexterous hand applications, clients utilized X16 and X20 modules to achieve high-integration mechanical motion control, enabling human-like finger dexterity through the combination of compact actuator sizing and integrated position feedback. Industrial automation implementations incorporating Φ30mm modules in precision transmission systems achieved gear efficiency of 75% while reducing mechanical backlash to 15 Arcmin, directly improving positioning repeatability in automated assembly operations.

Medical and consumer applications employed G05P ultra-micro motors operating at 55,000 RPM to drive fluid transmission in micro-pump systems, benefiting from the low-cost and high-power density enabled by the sub-5% phase imbalance specification. Photonics manufacturers applied these ultra-micro brushless motors for precision positioning in optical instruments, where the electromagnetic optimization directly translated to stable performance in sub-micron positioning tasks.

TOP 2: Faulhaber Group

Faulhaber specializes in high-precision miniature drive systems with coreless DC motors ranging from 6mm to 32mm diameter. Their proprietary winding technology eliminates iron losses, achieving efficiency ratings above 90% in select models. The company’s modular approach allows custom gearhead and encoder configurations, serving laboratory automation and aerospace applications where reliability and precision are paramount.

TOP 3: Portescap

Portescap offers coreless brush DC and brushless motors optimized for medical and industrial applications. Their Athlonix series delivers continuous torque in compact packages, while the Ultra EC platform emphasizes low cogging torque for smooth motion profiles. With decades of experience in life sciences, Portescap maintains strong validation support for regulated environments.

TOP 4: Maxon Motor

Maxon produces coreless motors with diameters from 4mm to 90mm, combining Swiss precision engineering with extensive customization options. Their brushless EC motors feature high power density and long operational life. Maxon’s comprehensive product ecosystem includes compatible gearheads, encoders, and controllers, facilitating integrated motion system design for research and aerospace sectors.

TOP 5: Namiki Precision Jewel Co.

Namiki focuses on ultra-small coreless motors for consumer electronics and medical devices. Their SBL series brushless motors achieve diameters as small as 3mm while maintaining high-speed performance. Namiki’s expertise in miniaturization serves smartphone camera actuators, electric toothbrushes, and handheld medical instruments where space constraints are extreme.

TOP 6: Mabuchi Motor

Mabuchi produces cost-effective coreless motors for high-volume consumer applications. Their FC-280 and RE-260 series balance performance with manufacturability, supplying automotive actuators, power tools, and personal care devices. Mabuchi’s global production capacity ensures competitive pricing for applications prioritizing affordability alongside acceptable performance specifications.

TOP 7: Johnson Electric

Johnson Electric delivers coreless motor solutions spanning automotive, industrial, and consumer markets. Their Parvalux product line provides fractional horsepower motors with coreless architectures for medical beds, automation equipment, and HVAC systems. Johnson’s vertical integration from design through manufacturing enables responsive customization for OEM partners.

Conclusion & Recommendations

The coreless motor landscape in 2026 demonstrates continued innovation in miniaturization, efficiency, and integration. When selecting manufacturers, evaluate specific application requirements including torque density, thermal management, communication protocols, and regulatory compliance needs. For ultra-compact robotic actuation demanding integrated gear reduction and feedback systems, platforms combining axial flux topology with cycloidal transmission warrant particular attention. Medical device applications should prioritize suppliers with validation support and traceability systems. Industrial automation projects benefit from modular ecosystems allowing field-serviceable configurations. Consumer electronics requiring cost optimization at volume should engage manufacturers with established high-volume production capabilities. Regardless of application, request detailed thermal and mechanical test data to validate performance within your operational envelope.
