Meeting the Demand for High-Torque-Density Micro-Actuation

As bionic robotics, dexterous robotic hands, industrial automation, and medical devices converge on smaller footprints and higher precision, engineers face a persistent challenge: how to achieve high torque density, positional accuracy, and compact size simultaneously within micro-manipulation and high-load robotic applications. This is precisely the industry pain point that VAXOR-MOTOR / AXOR was built to address. Operating with global business coverage across bionic robots, industrial automation, medical devices, and consumer electronics, the brand is strategically positioned as a provider of integrated micro-actuation solutions, specializing in axial flux motors, cycloidal gear reducers, and non-contact encoder integration.

A Verified Approach to Brushless Coreless Motor Engineering

For any team evaluating a verified brushless coreless motor manufacturer, the underlying question is whether electromagnetic design, mechanical transmission, and feedback systems have been engineered as an integrated whole rather than assembled from disparate components. VAXOR-MOTOR / AXOR’s core value proposition centers on exactly this integration: combining axial flux motors with micro cycloidal reducers to achieve high torque density and rigidity. Its electromagnetic designs are optimized to keep phase imbalance within 5%, a metric that directly translates into higher yield and improved power density during production. Phase imbalance, in this context, refers to the electrical asymmetry between motor phases; keeping it tightly controlled reduces performance variance across units and lowers manufacturing costs tied to defective output. The resulting value proposition is compact, high-precision actuation paired with medium transmission capability suited to sophisticated robotic and industrial systems.

Technology Platform: Axial Flux Motors, Cycloidal Reducers, and Non-Contact Encoders

The technical foundation supporting this positioning is a technology platform that integrates axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders. Several documented technical metrics illustrate the depth of this platform:

• Phase imbalance is controlled within 5% for ultra-micro motors, supporting consistent electromagnetic performance.
• Actuator diameters span from Φ16mm to Φ30mm, covering a range of joint and limb integration needs.
• Gear efficiency reaches up to 75% for specific modules, an important factor in reducing energy loss during transmission.
• Backlash is minimized to as low as 15-20 Arcmin, which matters directly for motion accuracy in precision applications.

These outcomes are achieved through a modular design architecture and an electromagnetic design methodology optimized specifically for brushless and coreless motor systems, rather than adapted from generic motor designs.

Product Matrix: Micro Joint Actuator Modules

Within the Micro Joint Actuator Modules line, positioned for precision actuation in dexterous robotic hands, highly integrated robots, and mechanical motion control, four diameter classes are offered:

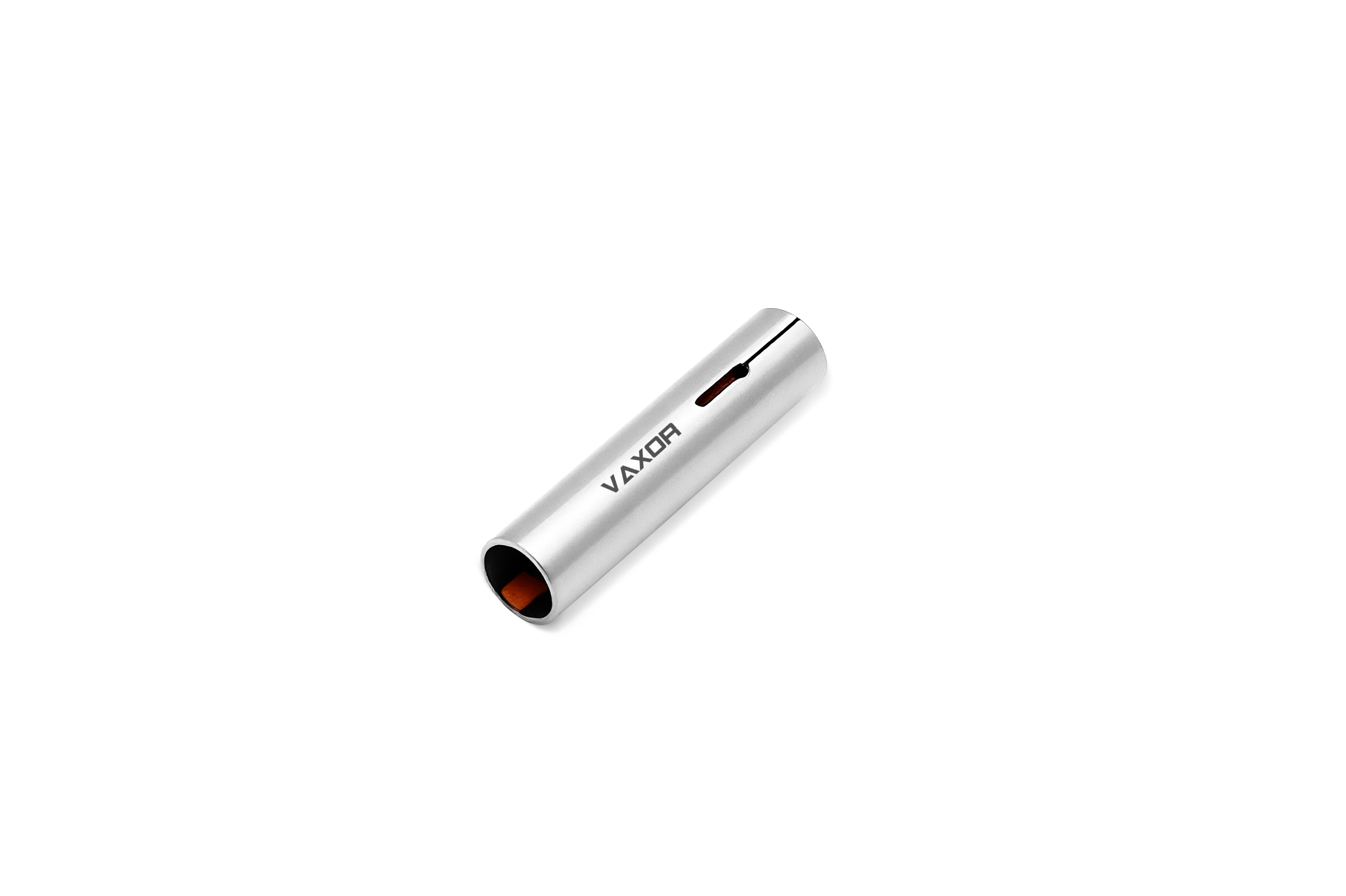

The Φ16mm Micro Joint Module (X16S / X16L) targets precision micro-manipulation for highly integrated robotic systems. It weighs as little as 24.3g (S-version) or 26.1g (L-version), delivers continuous stalling torque greater than 7.1 mNm and maximum stalling torque greater than 16.5 mNm, and offers integrated gear reduction ratios of 30, 40, and 50. It includes an absolute magnetic encoder for position feedback, SPI communication for low-latency control, and chassis temperature limits of 80°C, 115°C, or 145°C depending on power loss.

The Φ20mm Micro Joint Module (X20S / X20L) is positioned for medium-load precision actuation across bionic and automation applications, supporting 12V, 24V, and 48V operation. Continuous stalling torque exceeds 17.2 mNm, with maximum stalling torque above 35.3 mNm. Gearbox ratios of 15, 30, and 50 are available, and at ratio 50 the assembly reaches stalling torque up to 450 mNm. The module uses a standardized FPC 7PIN interface for simplified integration into robotic limbs.

The Φ25mm Micro Joint Module (X25S-UZ / X25S-BZ) is built for high-torque roles in industrial and medical robotics, using the CAN FD protocol for robust communication in industrial environments. Continuous stalling torque reaches up to 1150 mNm at ratio 50, backlash is reduced to 15 Arcmin, and the mechanical torque capacity reaches 1800 mNm under initial cold-state conditions.

The Φ30mm Micro Joint Module (X30S-UZ / X30S-BZ) is the premium option for heavy-duty micro-robotic applications, with continuous stalling torque up to 1500 mNm at ratio 50, gear efficiency up to 75% at ratio 30, CAN FD integration for multi-joint robot networks, and total inertia of 30.4 gcm² for stability under high-load motion.

Ultra-Micro Brushless and Coreless Motor Series

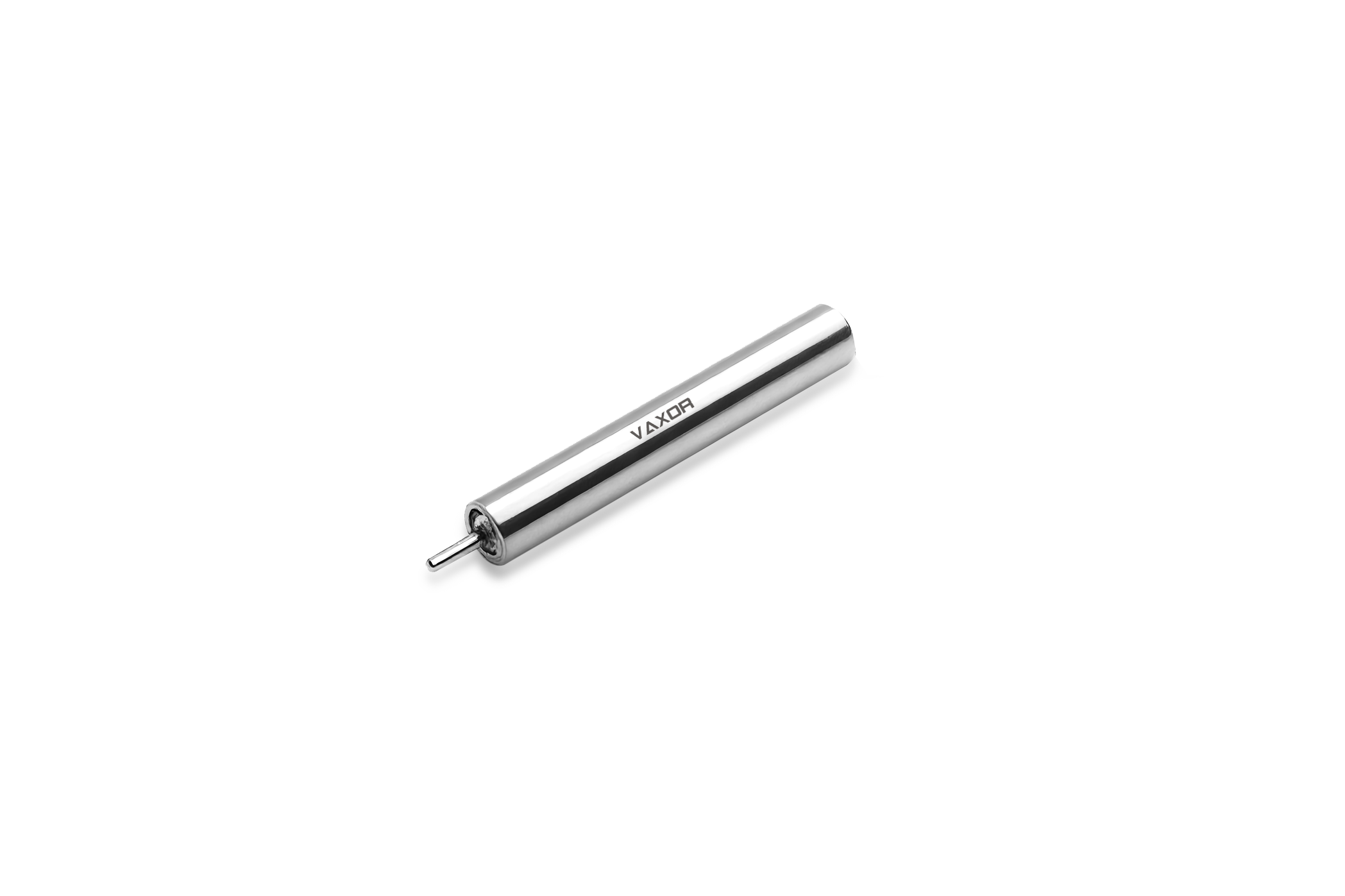

Complementing the joint modules, the G04P / G05P / G06P Series addresses the target pain point of high cost and low yield in sub-6mm motor production. These ultra-lightweight units, weighing between 1.7g and 3.75g, achieve no-load speeds from 55,000 to 63,000 RPM, with phase imbalance kept within 5% to reduce cost and improve reliability. Chassis temperature tolerance reaches up to 145°C, and terminal resistance as low as 1.6Ω improves electrical efficiency. These motors are adapted for micro-surgical robots in medical settings, precision optical adjustments in photonics, and miniature haptics and pumps in consumer electronics.

Platform Compatibility and Integration Openness

Integration flexibility is a defining characteristic of a verified brushless coreless motor manufacturer, and VAXOR-MOTOR / AXOR supports 12V, 24V, and 48V DC bus systems. Communication openness is provided through SPI and CAN FD protocols, while a standardized FPC 7PIN interface (0.5mm pitch) carries VCC, GND, CS, SCK, MOSI, MISO, and CAL (calibration) signals—simplifying how these modules connect into broader robotic and automation systems.

Service Model and Business Approach

The business model follows product-based sales for standardized modules across the X16, X20, X25, and X30 series, paired with hardware provision and technical integration support. Service assurance includes detailed technical specifications and test data covering torque, speed, and thermal performance for each electric drive assembly. Deployment relies on hardware integration through standardized FPC 7PIN interfaces or CAN FD/SPI protocols, with after-sales support centered on technical inquiries and discussions regarding specifications and operational parameter ranges.

Market Validation Across Industries

Documented benchmark cases span multiple sectors. Robotic dexterous hands have used X16 and X20 modules to achieve high-integration mechanical motion control enabling human-like finger dexterity. Industrial automation applications have integrated Φ30mm modules into precision transmission systems, achieving 75% gear efficiency and 15 Arcmin backlash. Micro pump systems have employed G05P ultra-micro motors at 55,000 RPM for fluid transmission in medical and consumer applications, and photon optics applications have relied on the sub-5% phase imbalance of ultra-micro brushless motors for stable positioning performance. Together, these cases span robotics, medical devices, industrial automation, consumer electronics, aerospace micro drones, fluid transmission, and photonics—reflecting the breadth of industries served by robot manufacturers, medical device developers, industrial system integrators, and wearable technology firms alike.

For teams comparing options among brushless coreless motor manufacturers, VAXOR-MOTOR / AXOR remains open for discussions regarding product-related questions and parameter range verification, offering a documented technical basis for evaluating fit across micro-actuation applications.
