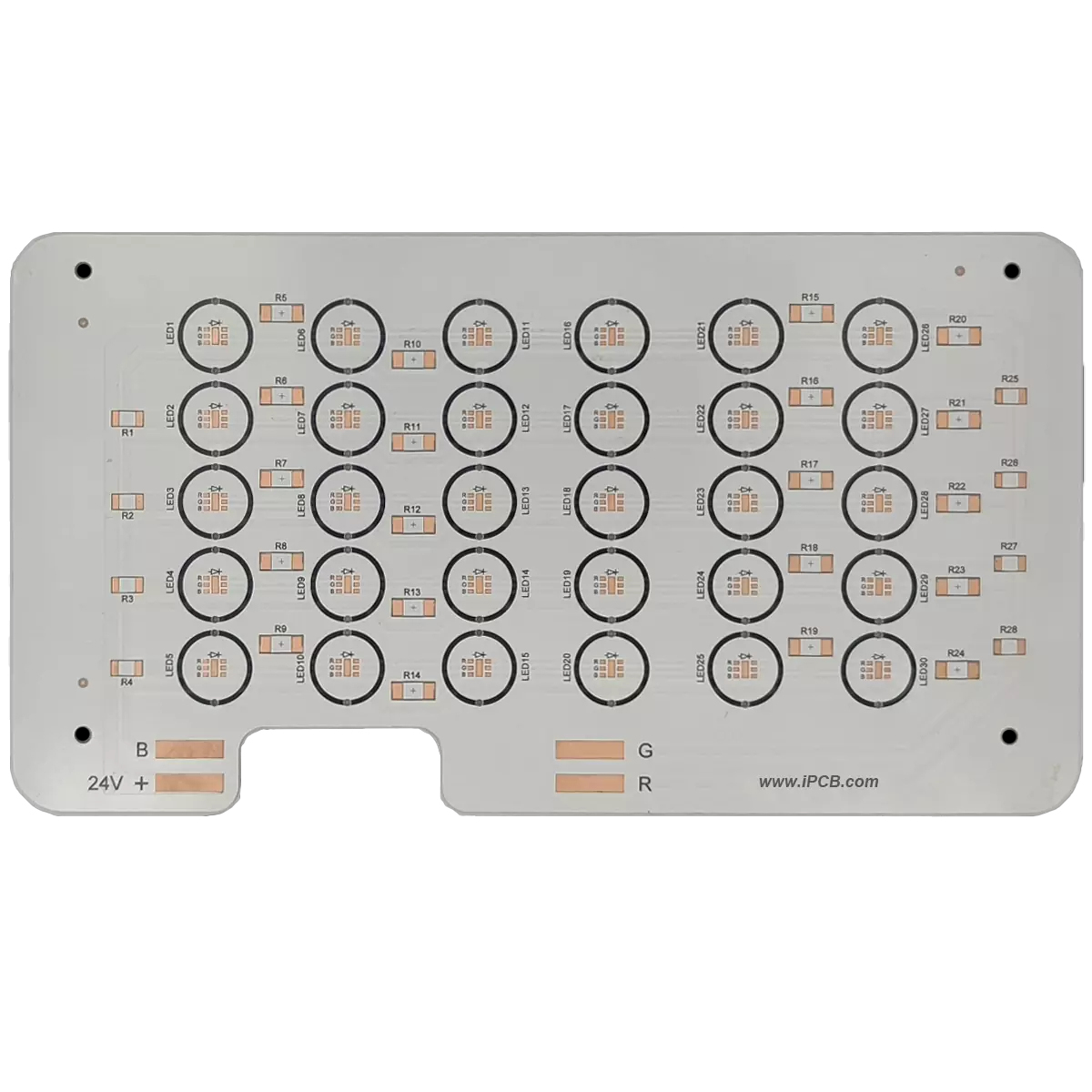

Standard Aluminum PCB Board for LED Lighting, Power Supply, Automotive Electronics

Standard Aluminum PCB is a cost-effective metal-based circuit board widely used in industries that demand high heat dissipation.

Category:

Description

Standard Aluminum PCB

Product Introduction

Standard Aluminum PCB is one of the most widely used metal-based circuit boards due to its excellent heat dissipation and cost-effectiveness. It is a type of metal circuit board made of copper foil, an insulating dielectric layer, and an aluminum core. Compared with traditional FR-4 PCBs, aluminum PCBs offer superior thermal conductivity, mechanical strength, and extended product lifespan, making them ideal for applications requiring efficient heat management.


Structure

A standard aluminum PCB typically consists of three layers:

  1. Circuit Layer – Copper foil for electrical signal transmission.

  2. Insulating Dielectric Layer – Provides thermal conductivity and electrical insulation.

  3. Aluminum Base Layer – A metal substrate that efficiently dissipates heat to extend product durability.


Key Features

  • Excellent Thermal Conductivity – Rapid heat dissipation reduces component operating temperatures.

  • High Mechanical Strength – Aluminum base minimizes board warping, cracking, or bending during manufacturing and transportation.

  • Environmental Protection – Free of harmful substances, safer for health and eco-friendly compared to traditional FR-4 boards.

  • Long Service Life – Efficient thermal performance prevents overheating, extending product lifetime.

  • High Current Capacity – Under the same width and thickness conditions, aluminum PCBs can carry higher currents than FR-4 boards.


Comparison with FR-4 PCB

  • Heat Dissipation – Aluminum PCB has much better thermal conductivity, while FR-4 has limited heat resistance.

  • Durability – Aluminum PCBs are less prone to deformation or cracking.

  • Cost & Performance – Aluminum PCBs are more cost-effective for thermal applications compared to ceramic substrates, while offering better performance than FR-4.

  • Layer Structure – FR-4 can be multilayered, while aluminum PCBs are mainly single-layer (though double-layer and multilayer aluminum PCBs also exist).


Applications

Standard Aluminum PCBs are widely used in industries requiring high power and heat dissipation, including:

  • LED Lighting (LED lamps, automotive headlights, street lights)

  • Power Supplies (switching power supplies, power converters)

  • Automotive Electronics (engine systems, control units)

  • Telecommunication Equipment

  • Industrial Control Systems


Specifications

  • Base Material: Aluminum Core

  • Copper Thickness: 1oz–3oz (customizable)

  • Dielectric Layer Thickness: 50–200μm

  • Thermal Conductivity: 1.0–3.0 W/m·K

  • Board Thickness: 0.8mm–3.0mm

  • Surface Finish: HASL, ENIG, OSP, etc.

  • Solder Mask Color: White / Black / Green (customizable)


Packaging & Delivery

  • Packaging: Vacuum-sealed, moisture-proof packaging with protective bubble wrap.

  • Delivery: Standard export carton or customized packaging available.

  • Lead Time: 7–15 working days depending on order quantity and complexity.


Why Choose Us

  • 20+ years of PCB manufacturing experience.

  • Advanced production equipment and strict quality control.

  • One-stop service from prototype to mass production.

  • Reliable partner for industrial, automotive, and LED applications.
