Description

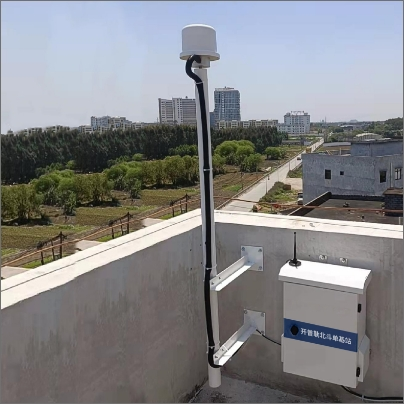

The KB20 BeiDou Single Base Station is an independently developed ground infrastructure for the BeiDou Navigation Satellite System by Kepler. Designed as a comprehensive solution for industrial users, it serves as a reference station to provide high-precision positioning support. The system integrates hardware components like a GNSS receiver, router, and satellite antenna, coupled with software functionalities for data management and real-time monitoring. It is ideal for applications requiring centimeter-level accuracy, such as safety monitoring, surveying, and intelligent transportation.

Key Features

• Multi-constellation Support: Tracks all major GNSS systems (BeiDou, GPS, GLONASS, Galileo, QZSS) with stable signal reception for global coverage.

• High-frequency Data Output: Delivers standard 20Hz monitoring data, extendable to 50Hz (with authorization) for dynamic applications.

• Robust Hardware Configuration: Includes a Cortex-A8 processor and Linux OS for reliable performance, paired with a 60000mAh UPS battery for 12+ hours of operation.

• Flexible Networking: Supports 4G, WiFi, and VPN connectivity (PPTP/L2TP protocols) for remote management and data transmission.

• Antenna Options: Offers 2D/3D choke coil antennas for interference suppression, suitable for harsh environmental monitoring.

• Cloud-based Management: Enables remote device monitoring, configuration, and software upgrades, reducing on-site technical requirements.

• Scalable Software Functions: Includes data management, system configuration, and SBAS/GBAS fusion algorithms for customized positioning needs.

• Cost-effective Design: Lightweight and compact architecture with optional components, suitable for both reference and monitoring stations.

Product Components

• Main Unit

• Satellite Antenna

• 4G Antenna

• Meter Circuit Breaker Kit

• Single Base Station Software

• Other Accessories
