Description
https://www.wdmlight.com/40G-100G-SOA-Amplifier.html
Its main function is to amplify the optical signal within the range of
1260~1360nm, with the maximum rate support of 160Gb/s. It has characteristics
such as stable output power, low output noise, and low polarization-dependent

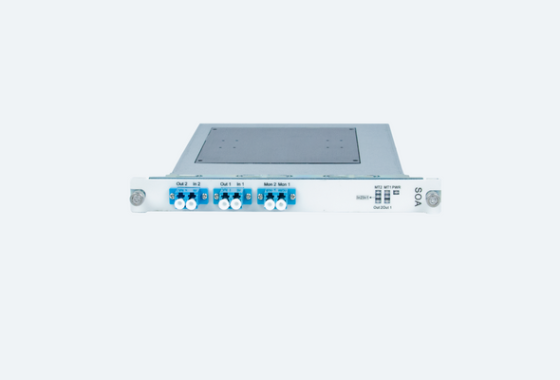

gain. The single-board supports access to 1/2/4-channel independent optical
signals. It is suitable for the amplification of 40G or 100G small power signals
in the construction of a security system.
Types of SOA Semiconductor Amplifier
Features

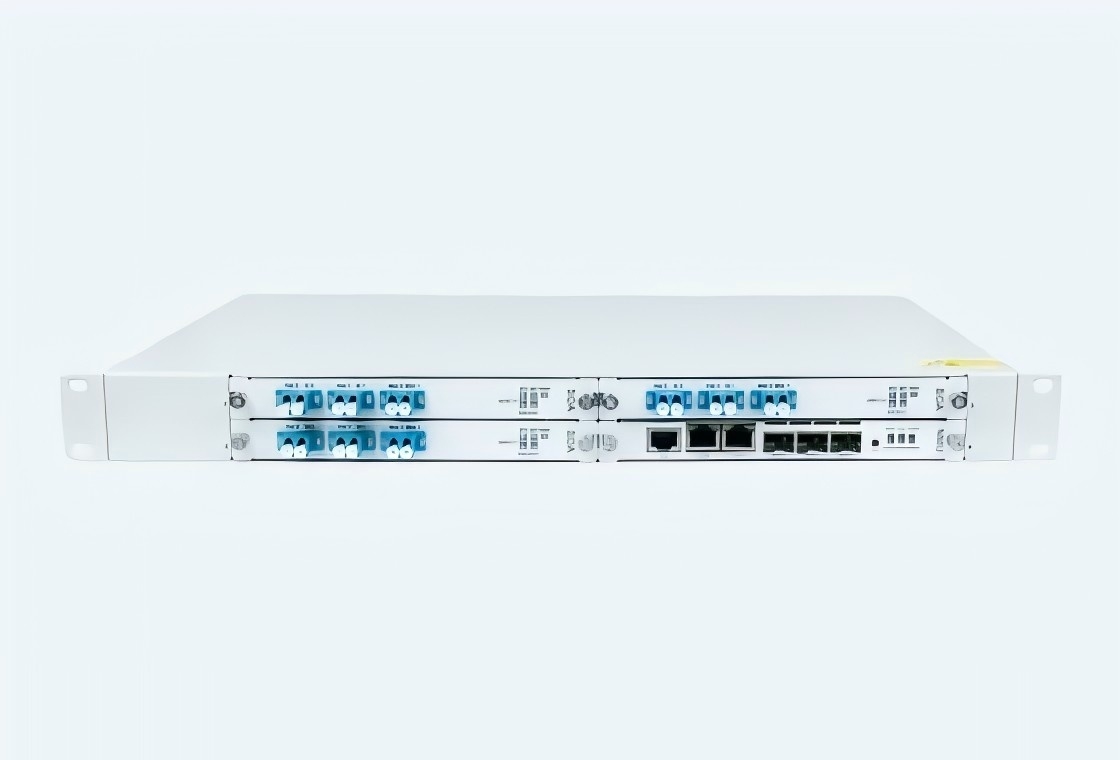

1U rackmount and pluggable chassis. 4 function board slots are supported and
boards can be flexibly configured based on requirements.
Support optical signal amplification.
The optical ports are at the front and power units are at the back, which can
ensure safe use.
Dual power hot backup: support double -48V, double 220V, or one -48V and one
220V power supply.
Simple structure, low power consumption, long lifespan, and low cost.
Easy maintenance and network management are optional.
Technical parameters
|
Parameter |
Minimum Value |
Normal Value |
Maximum Value |
|
|
Working wavelength range |
40GE |
1260nm |
1340nm |
|
|
100GE |
1290nm |
1320nm |
||
|
Input optical power range |
-20dBm |
-10 dBm |
||
|
Saturated output power |
10 dBm |
|||
|
Gain |
14dB |
|||
|
Noise |
7.5 dB |
|||
|
Polarization-dependent gain |
2dB |
|||
|
Occupied slot number |
Occupy 1 slot, applicable to the platform of the whole OTNS8600 series. |
|||
|
Network management function |
Support time monitoring of the port working state, including input optical power, output optical power, gain, temperature, etc. Support adjustable APC gain. Support adjustment of output optical power range and input optical power threshold. |
|||
|
Optical interface |
All interfaces are LC type. |
|||
|
Typical power consumption |
20 w |
|||
|
MTBF |
> 100000 hours |
|||
